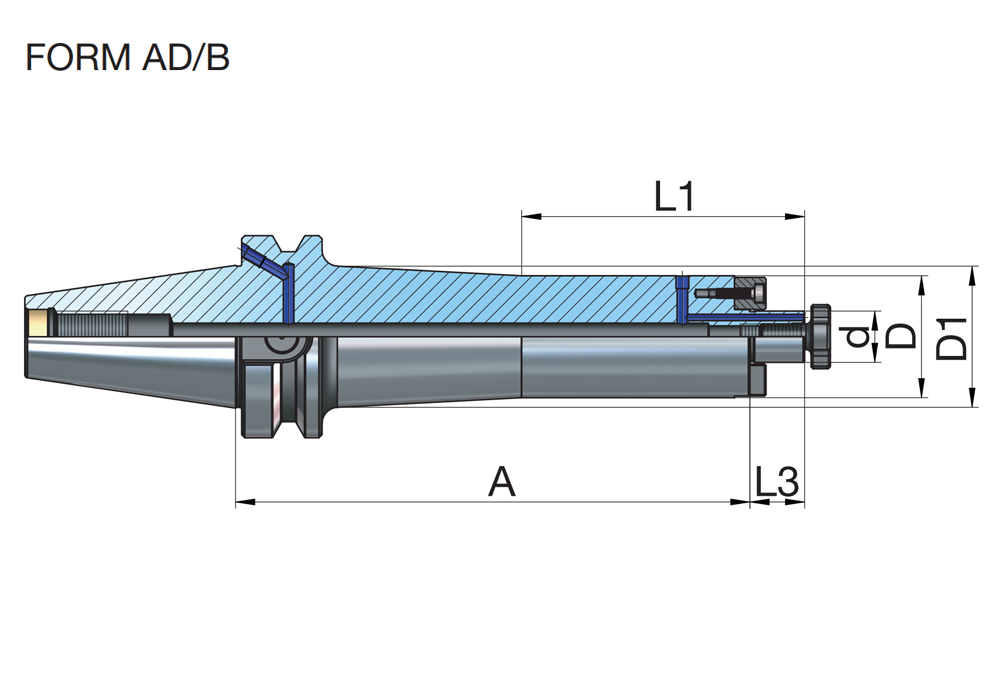

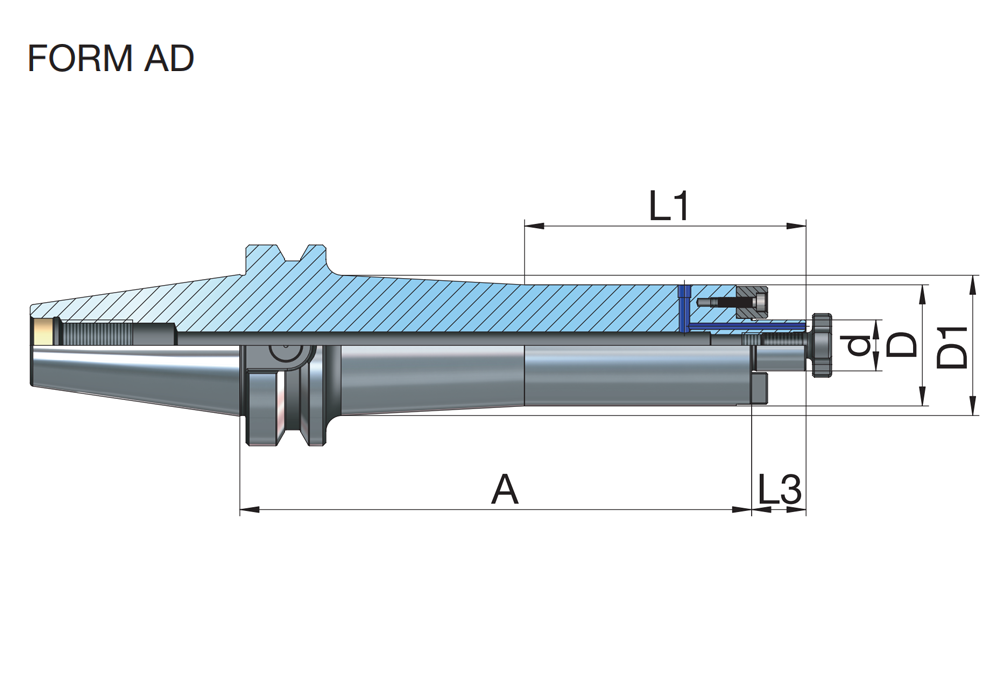

| SİPARİŞ NO | BT | Form | A | d | D | D1 | L1 | L3 | Kg |
|---|---|---|---|---|---|---|---|---|---|
|
505.11.16.50
|
BT 50 | JD | 50 | 16 | 38 | – | – | 17 | 3.80 |
|
505.11.16.100
|
BT 50 | JD | 100 | 16 | 38 | – | – | 17 | 4.25 |
|
505.11.22.55
|
BT 50 | JD | 55 | 22 | 48 | – | – | 19 | 3.98 |
|
505.11.22.100
|
BT 50 | JD | 100 | 22 | 48 | – | – | 19 | 4.61 |
|
505.11.27.55
|
BT 50 | JD | 55 | 27 | 60 | – | – | 21 | 4.17 |
|
505.11.27.100
|
BT 50 | JD | 100 | 27 | 60 | – | – | 21 | 5.17 |
|
505.11.32.55
|
BT 50 | JD | 55 | 32 | 78 | – | – | 24 | 4.52 |
|
*505.11.40.55
|
BT 50 | JD | 55 | 40 | 88 | – | – | 27 | 4.78 |
|
*505.11.60.80
|
BT 50 | JD | 80 | 60 | 128 | – | – | 40 | 8.02 |
|
505.11.22.160
|
BT 50 | JD | 160 | 22 | 48 | 53 | 88 | 19 | 5.57 |
|
505.11.16.200
|
BT 50 | JD | 200 | 16 | 38 | 43 | 120 | 17 | 5.27 |
|
505.11.27.200
|
BT 50 | JD | 200 | 27 | 60 | 65,5 | 120 | 21 | 7.60 |
|
505.11.32.100
|
BT 50 | JD | 100 | 32 | 78 | – | – | 24 | 6.20 |
|
505.11.32.160
|
BT 50 | JD | 160 | 32 | 78 | 84 | 88 | 24 | 10.15 |
|
505.11.16.160
|
BT 50 | JD | 160 | 16 | 38 | 42,5 | 88 | 17 | 4.86 |
|
505.11.22.200
|
BT 50 | JD | 200 | 22 | 48 | 53 | 120 | 19 | 6.20 |
|
505.11.32.200
|
BT 50 | JD | 200 | 32 | 78 | 84,5 | 120 | 24 | 10.14 |
|
*505.11.40.160
|
BT 50 | JD | 160 | 40 | 88 | 94,5 | 88 | 27 | 9.97 |
|
*505.11.40.100
|
BT 50 | JD | 100 | 40 | 88 | – | – | 27 | 6.91 |
|
505.11.27.160
|
BT 50 | JD | 160 | 27 | 60 | 65 | 88 | 21 | 6.63 |
|
*505.11.40.200
|
BT 50 | JD | 200 | 40 | 88 | 95,5 | 120 | 27 | 11.93 |
|
505.11.16.130
|
BT 50 | JD | 130 | 16 | 38 | – | – | 17 | 4.53 |
|
505.11.22.130
|
BT 50 | JD | 130 | 22 | 48 | – | – | 19 | 5.06 |
|
505.11.27.130
|
BT 50 | JD | 130 | 27 | 60 | – | – | 21 | 5.85 |
|
505.11.32.130
|
BT 50 | JD | 130 | 32 | 78 | – | – | 24 | 7.32 |
|
*505.11.40.130
|
BT 50 | JD | 130 | 40 | 88 | – | – | 27 | 8.33 |
|
506.11.22.55
|
BT 50 | JF | 55 | 22 | 48 | – | – | 19 | 3.90 |
|
506.11.22.100
|
BT 50 | JF | 100 | 22 | 48 | – | – | 19 | 4.49 |
|
506.11.27.55
|
BT 50 | JF | 55 | 27 | 60 | – | – | 21 | 4.09 |
|
506.11.27.100
|
BT 50 | JF | 100 | 27 | 60 | – | – | 21 | 5.04 |
|
506.11.32.55
|
BT 50 | JF | 55 | 32 | 78 | – | – | 24 | 4.44 |
|
506.11.32.100
|
BT 50 | JF | 100 | 32 | 78 | – | – | 24 | 6.07 |
|
*506.11.40.55
|
BT 50 | JF | 55 | 40 | 88 | – | – | 27 | 4.68 |
|
*506.11.40.100
|
BT 50 | JF | 100 | 40 | 88 | – | – | 27 | 6.91 |
|
*506.11.60.80
|
BT 50 | JF | 80 | 60 | 128 | – | – | 40 | 7.89 |
|
506.11.22.160
|
BT 50 | JF | 160 | 22 | 48 | 53 | 88 | 19 | 5.39 |
|
506.11.16.100
|
BT 50 | JF | 100 | 16 | 38 | – | – | 17 | 4.17 |
|
506.11.27.160
|
BT 50 | JF | 160 | 27 | 60 | 65 | 88 | 21 | 6.45 |
|
506.11.32.160
|
BT 50 | JF | 160 | 32 | 78 | 84 | 88 | 24 | 8.42 |
|
*506.11.40.160
|
BT 50 | JF | 160 | 40 | 88 | 94,5 | 88 | 27 | 9.78 |
|
506.11.16.50
|
BT 50 | JF | 50 | 16 | 38 | – | – | 17 | 3.75 |
|
506.11.16.160
|
BT 50 | JF | 160 | 16 | 38 | 42,5 | 88 | 17 | 4.76 |
|
506.11.16.130
|
BT 50 | JF | 130 | 16 | 38 | – | – | 17 | 4.44 |
|
506.11.22.130
|
BT 50 | JF | 130 | 22 | 48 | – | – | 19 | 4.91 |
|
506.11.27.130
|
BT 50 | JF | 130 | 27 | 60 | – | – | 21 | 5.70 |
|
506.11.32.130
|
BT 50 | JF | 130 | 32 | 78 | – | – | 24 | 7.16 |
|
*506.11.40.130
|
BT 50 | JF | 130 | 40 | 88 | – | – | 27 | 8.17 |
|
506.11.16.200
|
BT 50 | JF | 200 | 16 | 38 | 43 | 120 | 17 | 5.26 |
|
506.11.22.200
|
BT 50 | JF | 200 | 22 | 48 | 53 | 120 | 19 | 6.19 |
|
506.11.27.200
|
BT 50 | JF | 200 | 27 | 60 | 65,5 | 120 | 21 | 7.59 |
|
506.11.32.200
|
BT 50 | JF | 200 | 32 | 78 | 84,5 | 120 | 24 | 10.14 |
|
*506.11.40.200
|
BT 50 | JF | 200 | 40 | 88 | 95,5 | 120 | 27 | 11.92 |

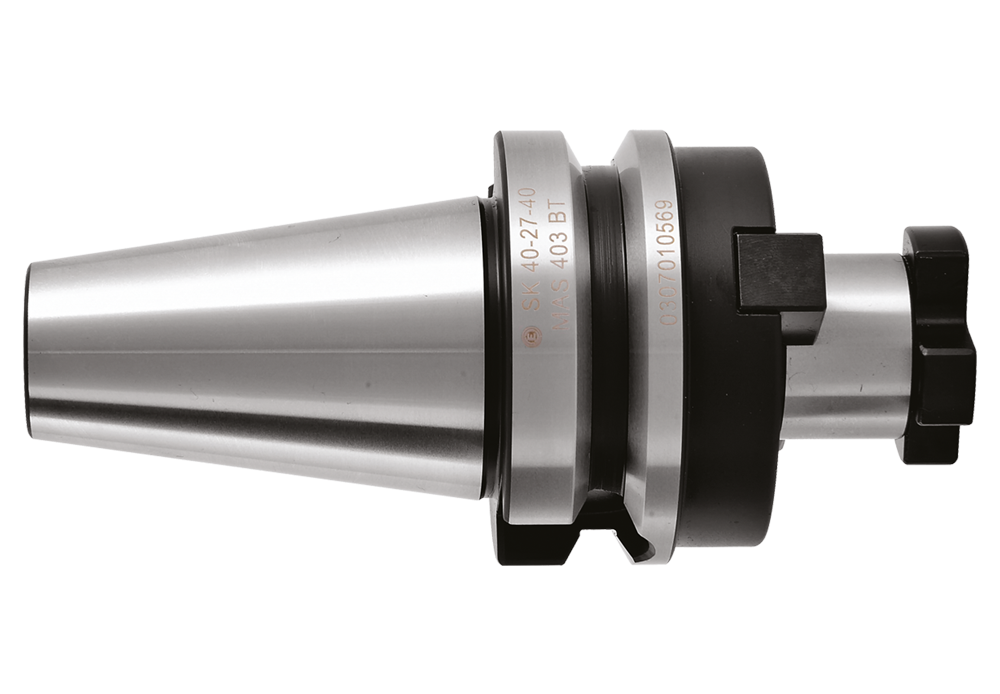

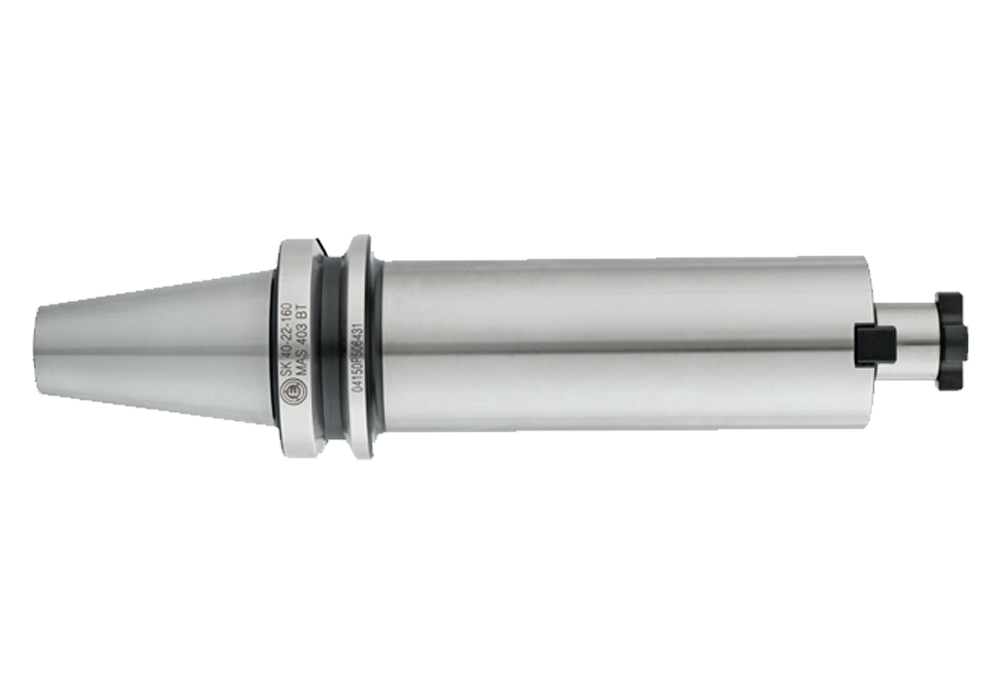

Alın Kamalı Malafa JIS B 6339 (MAS 403 BT) BT 50
* d= Ø40 (M12) *d= Ø60 (M16) DIN 2079′ a uygun ilave 4 vida bağlantılı
