| Ürün Kodu | d1 (mm) | L1 (mm) | L2 (mm) | k mm |
| B00301010200 | 2,0 | 50 | 25 | 1.60 |
| B00301010250 | 2.5 | 58 | 29 | 2.10 |
| B00301010300 | 3,0 | 62 | 31 | 2,24 |
| B00301010350 | 3.5 | 71 | 35 | 2.70 |
| B00301010400 | 4,0 | 76 | 38 | 3,15 |
| B00301010450 | 4,5 | 81 | 41 | 3,55 |
| B00301010500 | 5,0 | 87 | 44 | 4,00 |
| B00301010550 | 5,5 | 93 | 47 | 4,50 |
| B00301010600 | 6,0 | 93 | 47 | 4,50 |
| B00301010650 | 6,5 | 100 | 50 | 5,00 |
| B00301010700 | 7,0 | 107 | 54 | 5,60 |
| B00301010750 | 7.5 | 107 | 54 | 5.60 |
| B00301010800 | 8,0 | 115 | 58 | 6,30 |
| B00301010850 | 8,5 | 115 | 58 | 6,30 |
| B00301010900 | 9,0 | 124 | 62 | 7,10 |
| B00301010950 | 9.5 | 124 | 62 | 7.10 |
| B00301011000 | 10,0 | 133 | 66 | 8,00 |
| B00301011050 | 10.5 | 133 | 66 | 8.00 |
| B00301011100 | 11,0 | 142 | 71 | 9,00 |
| B00301011150 | 11,5 | 142 | 71 | 9.00 |
| B00301011200 | 12,0 | 152 | 76 | 10,00 |
| B00301011250 | 12.5 | 152 | 76 | 10.00 |
| B00301011300 | 13,0 | 152 | 76 | 10,00 |
| B00301011350 | 13.5 | 163 | 81 | 11.20 |
| B00301011400 | 14,0 | 163 | 81 | 11,20 |
| B00301011450 | 14.5 | 163 | 81 | 11.20 |
| B00301011500 | 15,0 | 163 | 81 | 11,20 |
| B00301011550 | 15.5 | 175 | 87 | 12.50 |
| B00301011600 | 16,0 | 175 | 87 | 12,50 |
| B00301011650 | 16.5 | 175 | 87 | 12.50 |
| B00301011700 | 17,0 | 175 | 87 | 12,50 |
| B00301011750 | 17.5 | 188 | 93 | 14.00 |
| B00301011800 | 18,0 | 188 | 93 | 14,00 |
| B00301011850 | 18.5 | 188 | 93 | 14.00 |
| B00301011900 | 19,0 | 188 | 93 | 14.00 |
| B00301011950 | 19.5 | 201 | 100 | 16.00 |
| B00301012000 | 20,0 | 201 | 100 | 16,00 |
| B00301012100 | 21,0 | 201 | 100 | 16.00 |
| B00301012200 | 22 | 215 | 107 | 18.00 |
| B00301012300 | 23,0 | 215 | 107 | 18.00 |
| B00301012400 | 24 | 231 | 115 | 20.00 |
| B00301012500 | 25,0 | 231 | 115 | 20.00 |
| B00301012600 | 26 | 231 | 115 | 20.00 |
| B00301012700 | 27,0 | 247 | 124 | 22.40 |
| B00301012800 | 28,0 | 247 | 124 | 22.40 |
| B00301012900 | 29,0 | 247 | 124 | 22.40 |
| B00301013000 | 30 | 247 | 124 | 22.40 |
| B00301013200 | 32 | 265 | 133 | 25.00 |
| B00301013300 | 33,0 | 265 | 133 | 25.00 |
| B00301013500 | 35 | 284 | 142 | 28.00 |
| B00301013600 | 36,0 | 284 | 142 | 28.00 |
| B00301013800 | 38,0 | 305 | 152 | 31.50 |
| B00301014000 | 40 | 305 | 152 | 31.50 |

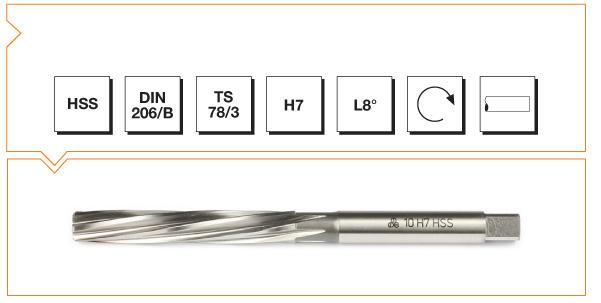

HSS DIN 206 Silindirik Saplı El Raybası
34
kişi bu ürünü inceliyor!
Açıklama
Değerlendirmeler (0)
Değerlendirmeler
Henüz değerlendirme yapılmadı.
