| Ürün Kodu | d1 (mm) | d2 (h9) (mm) | L1 (mm) | L2 (mm) |
| B00303010200 | 49 | 11 | ||
| B00303010250 | 2.5 | 2.5 | 57 | 14 |
| B00303010300 | 61 | 15 | ||
| B00303010350 | 3.5 | 3.5 | 70 | 18 |
| B00303010400 | 75 | 19 | ||
| B00303010450 | 4.5 | 4.5 | 80 | 21 |
| B00303010500 | 86 | 23 | ||
| B00303010550 | 5.5 | 5.6 | 93 | 26 |
| B00303010600 | 5.6 | 93 | 26 | |
| B00303010650 | 6.5 | 6.3 | 101 | 28 |
| B00303010700 | 7.1 | 109 | 31 | |
| B00303010750 | 7.5 | 7.1 | 109 | 31 |
| B00303010800 | 117 | 33 | ||
| B00303010850 | 8.5 | 117 | 33 | |
| B00303010900 | 125 | 36 | ||
| B00303010950 | 9.5 | 125 | 36 | |
| B00303011000 | 10 | 10 | 133 | 38 |
| B00303011050 | 10.5 | 10 | 133 | 38 |
| B00303011100 | 11 | 10 | 142 | 41 |
| B00303011150 | 11.5 | 10 | 142 | 41 |
| B00303011200 | 12 | 10 | 151 | 44 |
| B00303011250 | 12.5 | 10 | 151 | 44 |
| B00303011300 | 13 | 10 | 151 | 44 |
| B00303011350 | 13.5 | 12.5 | 160 | 47 |
| B00303011400 | 14 | 12.5 | 160 | 47 |
| B00303011450 | 14.5 | 12.5 | 162 | 50 |
| B00303011500 | 15 | 12.5 | 162 | 50 |
| B00303011550 | 15.5 | 12.5 | 170 | 52 |
| B00303011600 | 16 | 12.5 | 170 | 52 |
| B00303011650 | 16.5 | 14 | 175 | 54 |
| B00303011700 | 17 | 14 | 175 | 54 |
| B00303011750 | 17.5 | 14 | 182 | 56 |
| B00303011800 | 18 | 14 | 182 | 56 |
| B00303011850 | 18.5 | 16 | 189 | 58 |
| B00303011900 | 19 | 16 | 189 | 58 |
| B00303012000 | 20 | 16 | 195 | 60 |
| B00303012200 | 22 | 18 | 225 | 55 |
| B00303012400 | 24 | 20 | 240 | 60 |
| B00303012500 | 25 | 20 | 245 | 60 |
| B00303012600 | 26 | 20 | 250 | 60 |
| B00303012800 | 28 | 22 | 270 | 65 |
| B00303013000 | 30 | 24 | 280 | 70 |

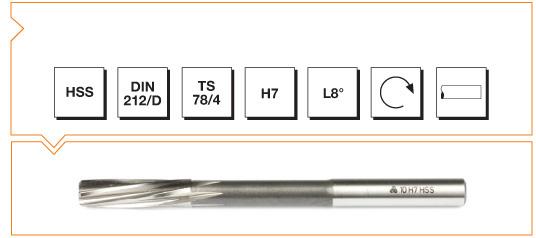

HSS DIN 212 Silindirik Saplı Makina Raybası
