| Ürün Kodu | d1 UNF | P adım G/Inch | L1 (mm) | L2 (mm) | d2 (mm) | k (h12) (mm) |
| B00104140350 | Nr. 6 | 40 | 45 | 12 | 4,0 | 3,0 |
| B00104140417 | Nr. 8 | 36 | 50 | 12 | 6,0 | 4,9 |
| B00104140483 | Nr. 10 | 32 | 50 | 12 | 6,0 | 4,9 |
| B00104140635 | 1/4″ | 28 | 50 | 16 | 6,0 | 4,9 |
| B00104140794 | 5/16″ | 24 | 56 | 22 | 6,0 | 4,9 |
| B00104140952 | 3/8″ | 24 | 63 | 20 | 7,0 | 5,5 |
| B00104141111 | 7/16″ | 20 | 63 | 20 | 8,0 | 6,2 |
| B00104141270 | 1/2″ | 20 | 70 | 22 | 9,0 | 7,0 |
| B00104141429 | 9/16″ | 18 | 70 | 22 | 11,0 | 9,0 |
| B00104141587 | 5/8″ | 18 | 70 | 22 | 12,0 | 9,0 |
| B00104141905 | 3/4″ | 16 | 80 | 22 | 14,0 | 11,0 |
| B00104142222 | 7/8″ | 14 | 80 | 22 | 18,0 | 14,5 |
| B00104142540 | 1″ | 12 | 90 | 22 | 18 | 14.5 |

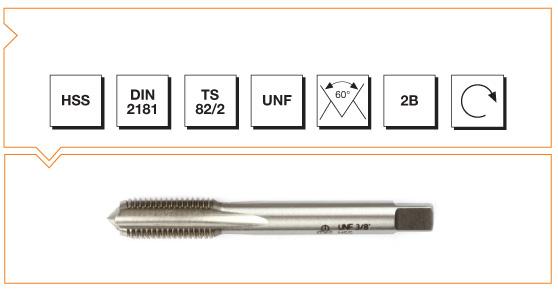

HSS DIN 2181 USA İnce Vidalı Kılavuz – UNF – Son
